AAV Vector Engineering

We are developing custom recombinant adeno-associated viruses (AAVs) for more efficient and targeted gene transfer in vivo.

M-CREATE - for isolating novel AAV variants from large viral libraries

Ravindra Kumar, et al., Nature Methods 2020 [Github ]

AAV-PHP Production - for individual virus preparations

Challis et al., Nature Protocols 2019 [ Protocols.io link ]

AAV Production & Administration Worksheets - for individual virus preparations

Transfection Calculator

Titration Calculator

Viral Injection Volume Calculator

  • The CLOVER Center is equipped with a BSL-2 virus production facility as well as wet labs for molecular cloning, tissue processing, and macromolecular staining procedures.

  • CLOVER offers collaborative custom vector development.
  • One-on-one consultations and training for viral vector production to jump start research projects

  • Focused workshops for researchers with various backgrounds and experience levels

  • Yearly 5-day course on systemic AAVs and CLARITY as part of the NeuroNex MINT Technology Hub

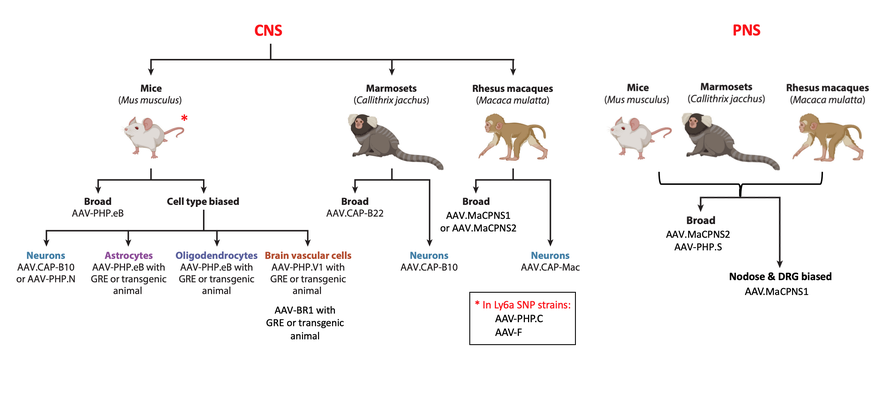

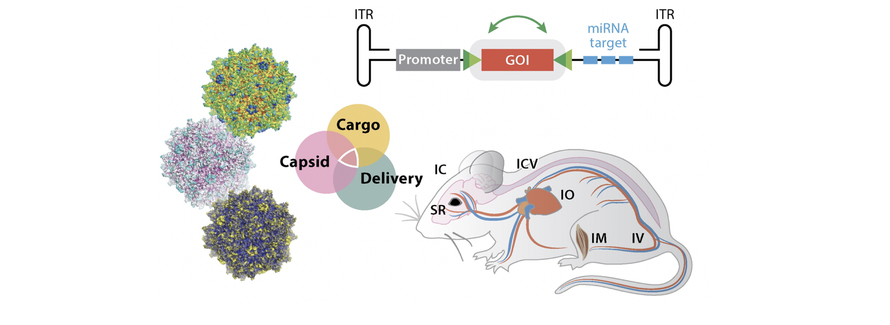

Tropism is a synergy of capsid, genome, and route of administration

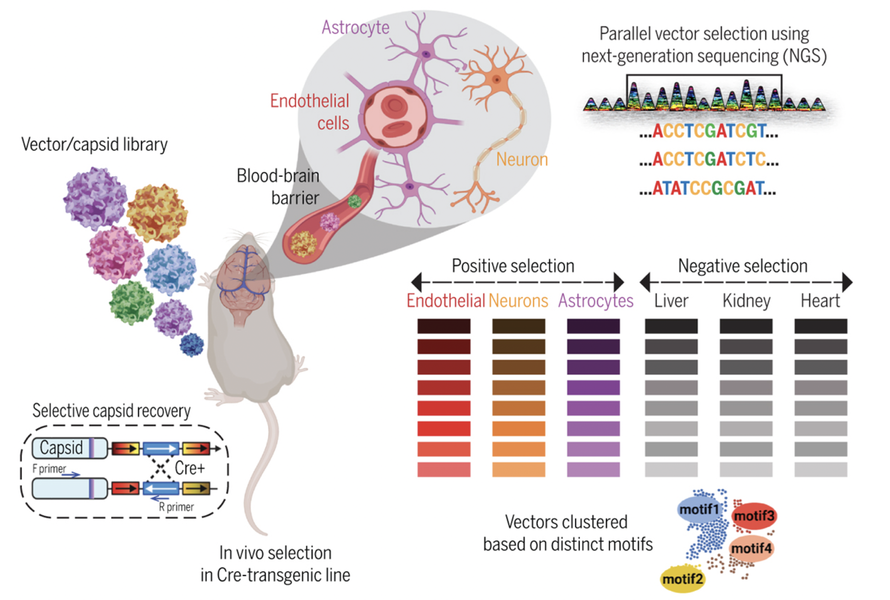

Multiplexed Cre-recombination-based AAV-targeted evolution

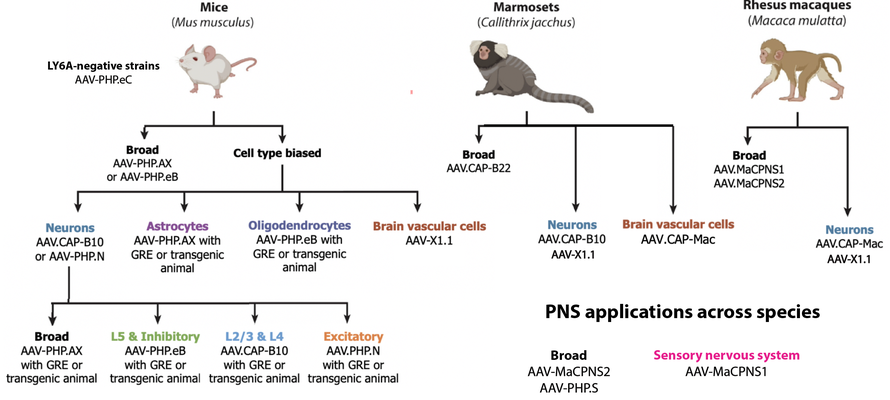

Systemic administration & tailored tropism

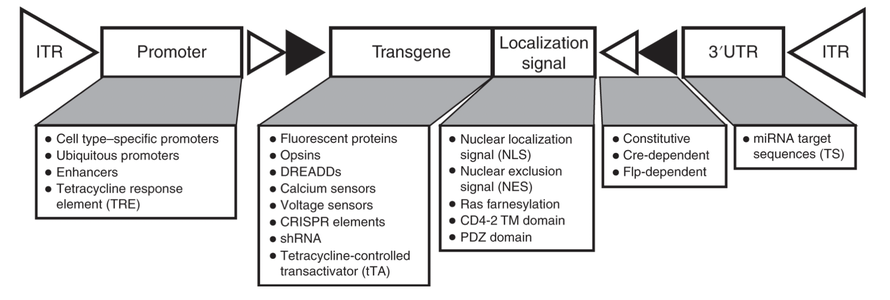

Space constraints necessitate clever design

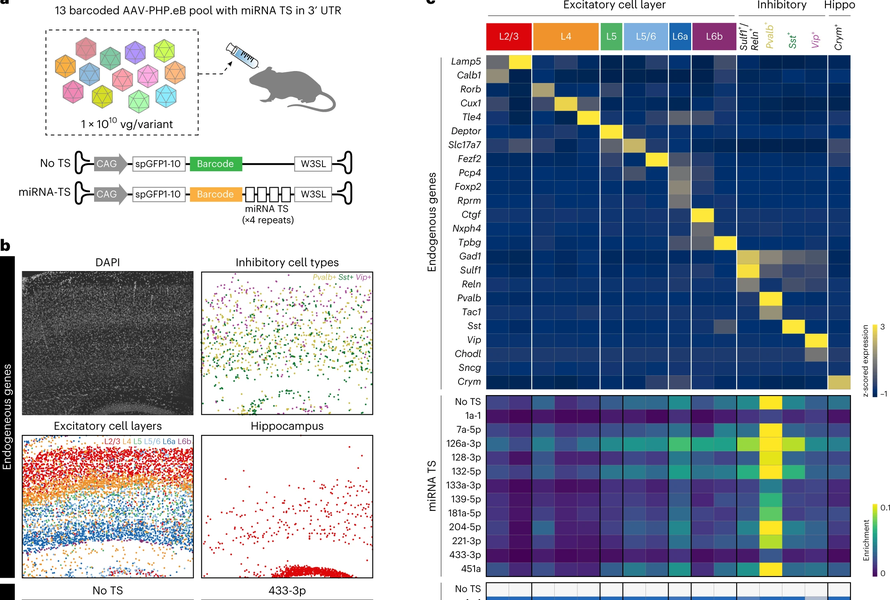

miRNA target sites refine transgene expression profiles

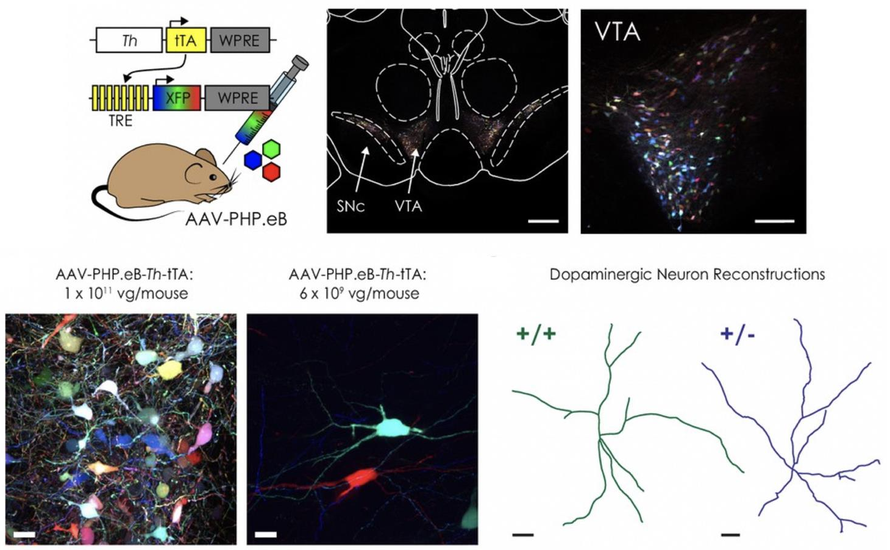

Vector-assisted spectral tracing (VAST): bright labeling & tunable sparcity

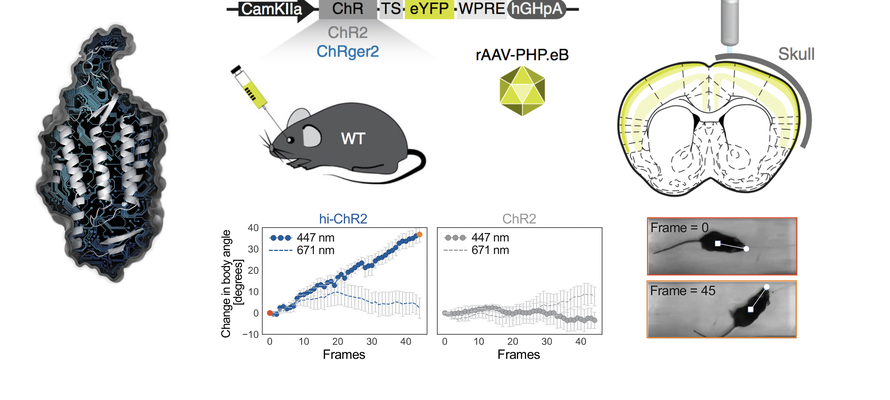

Engineered opsins to pair with systemic AAV administration

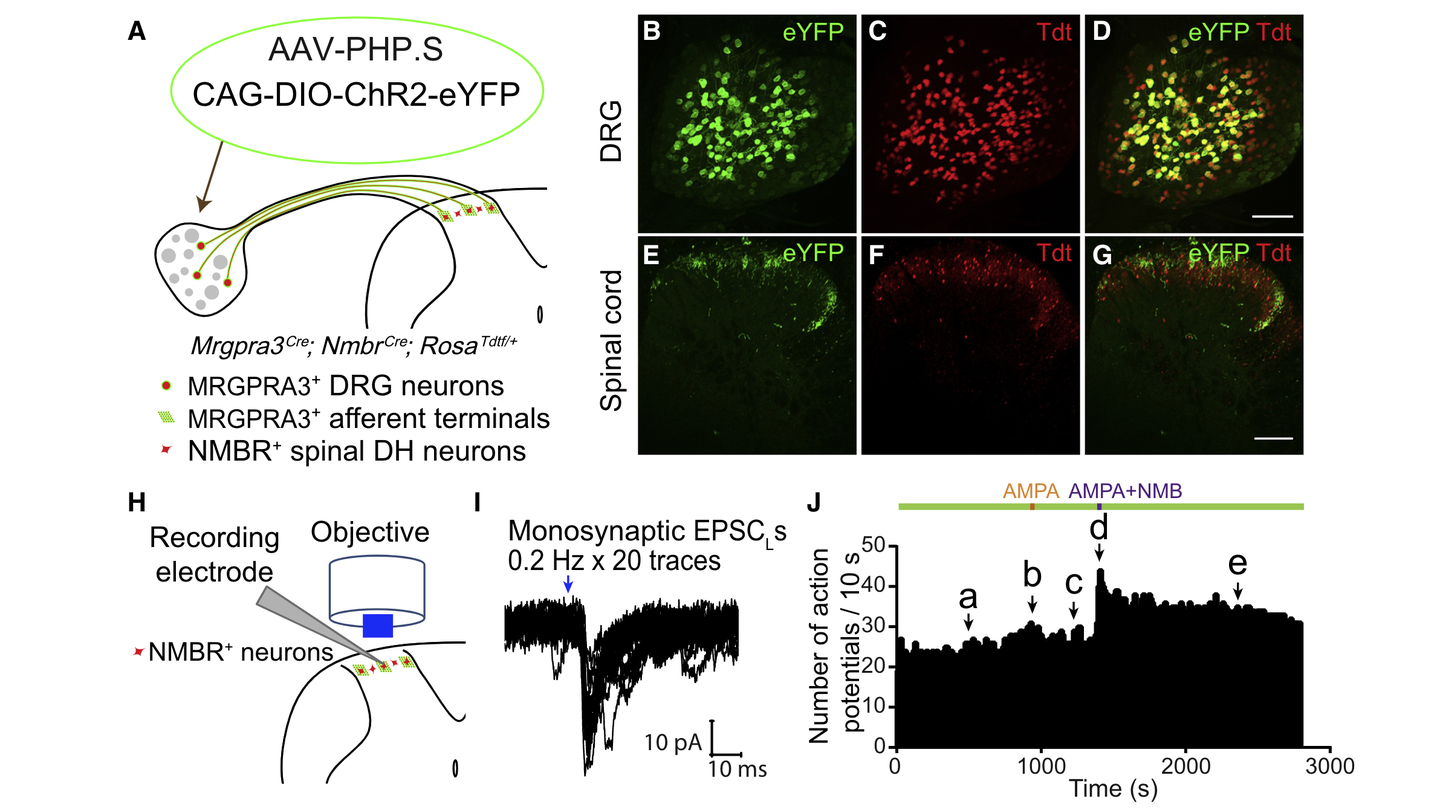

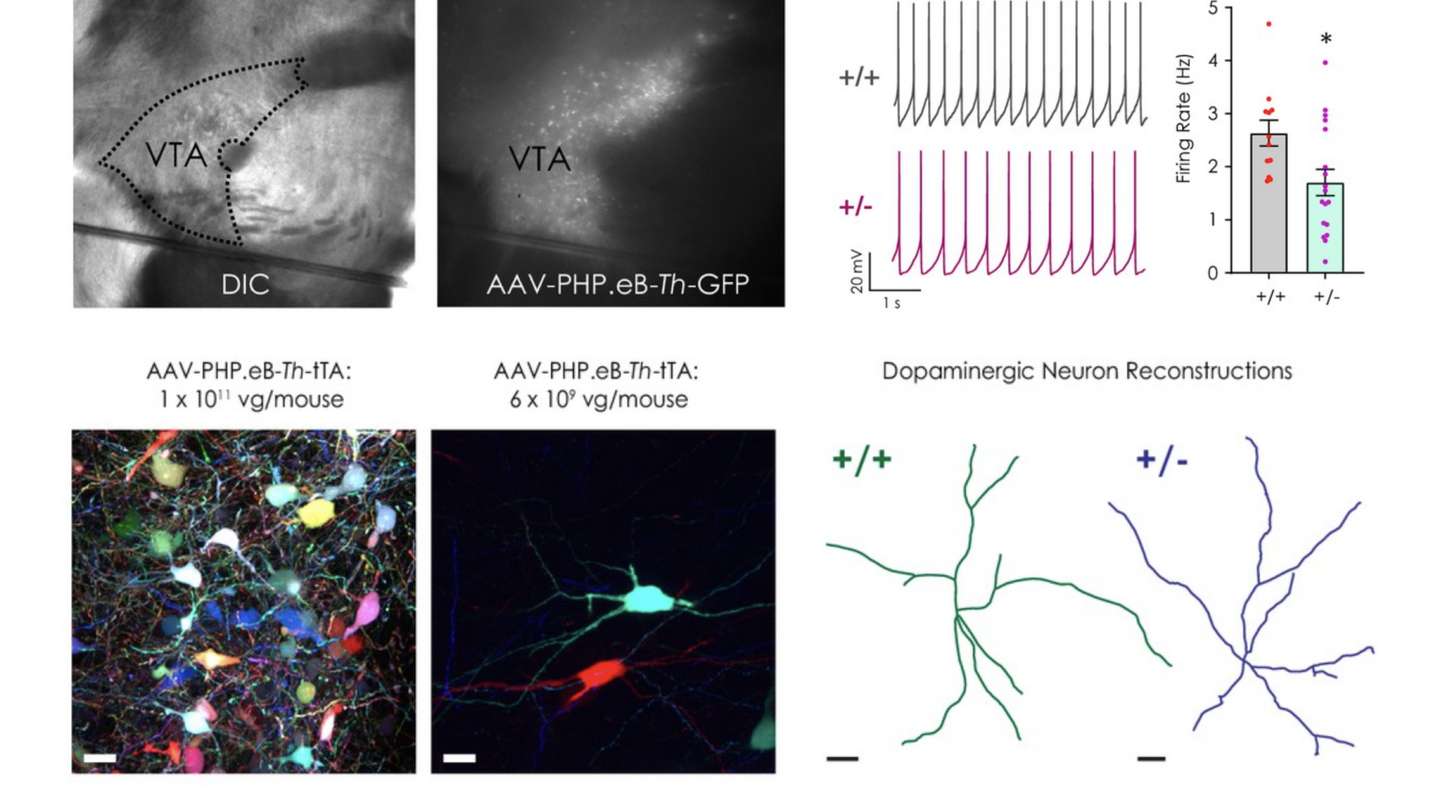

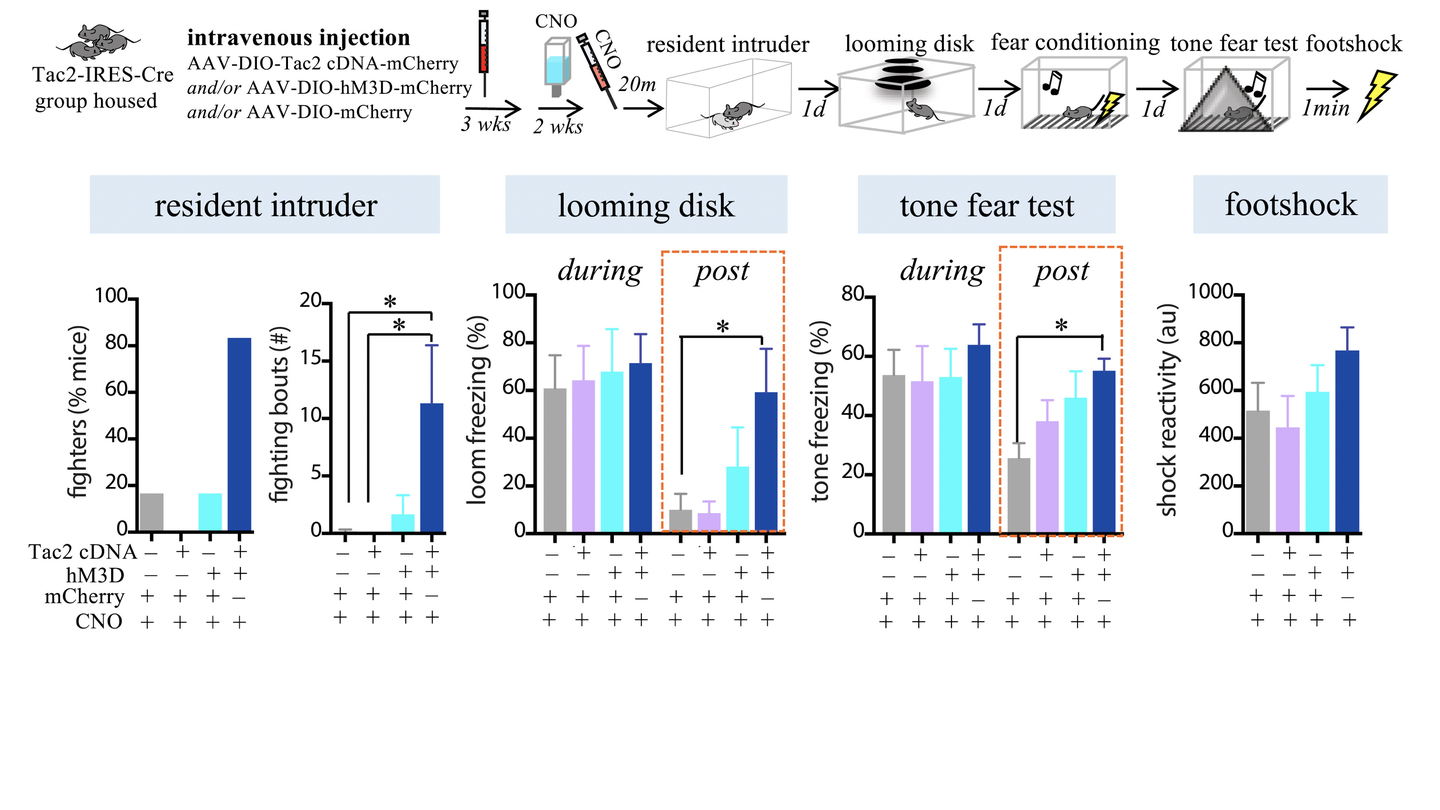

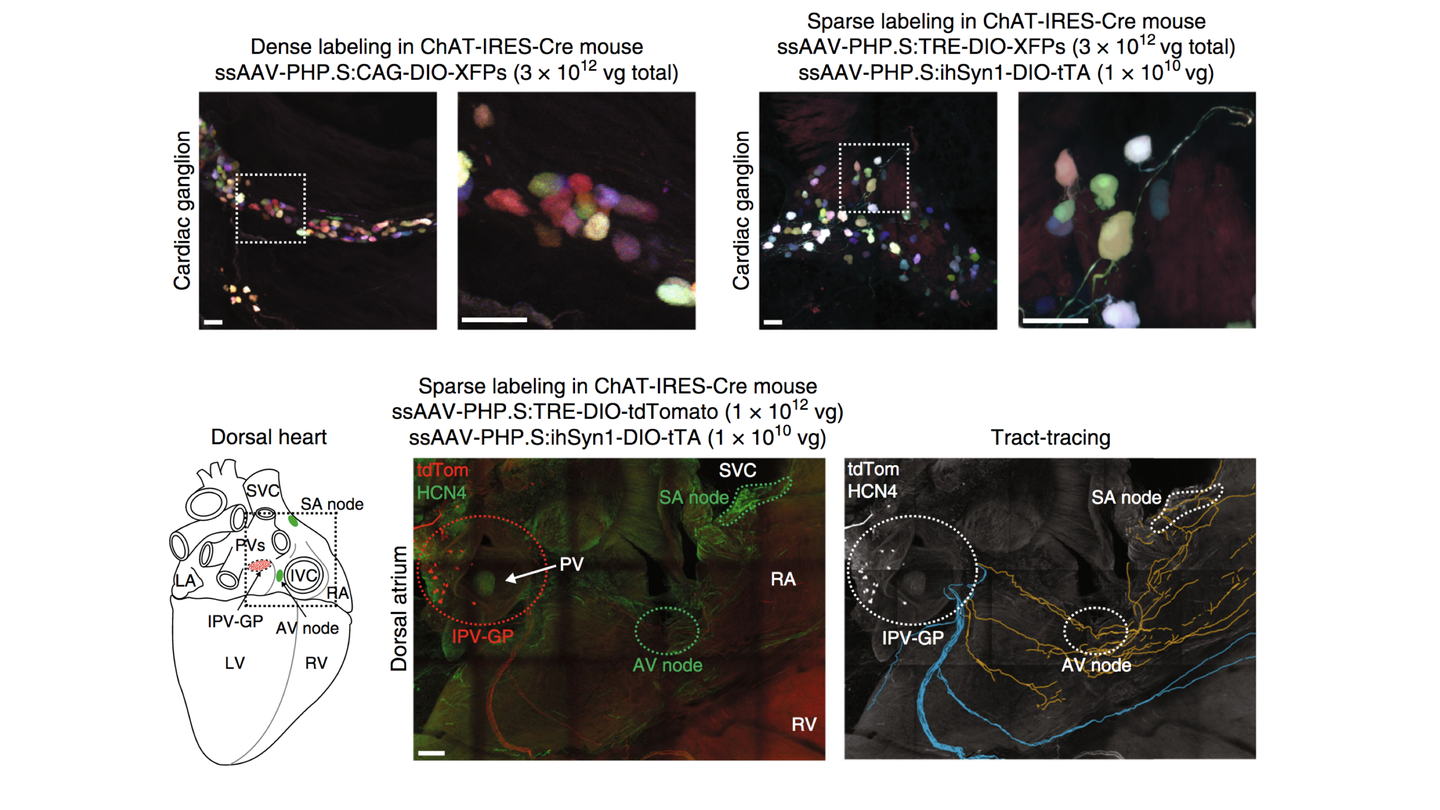

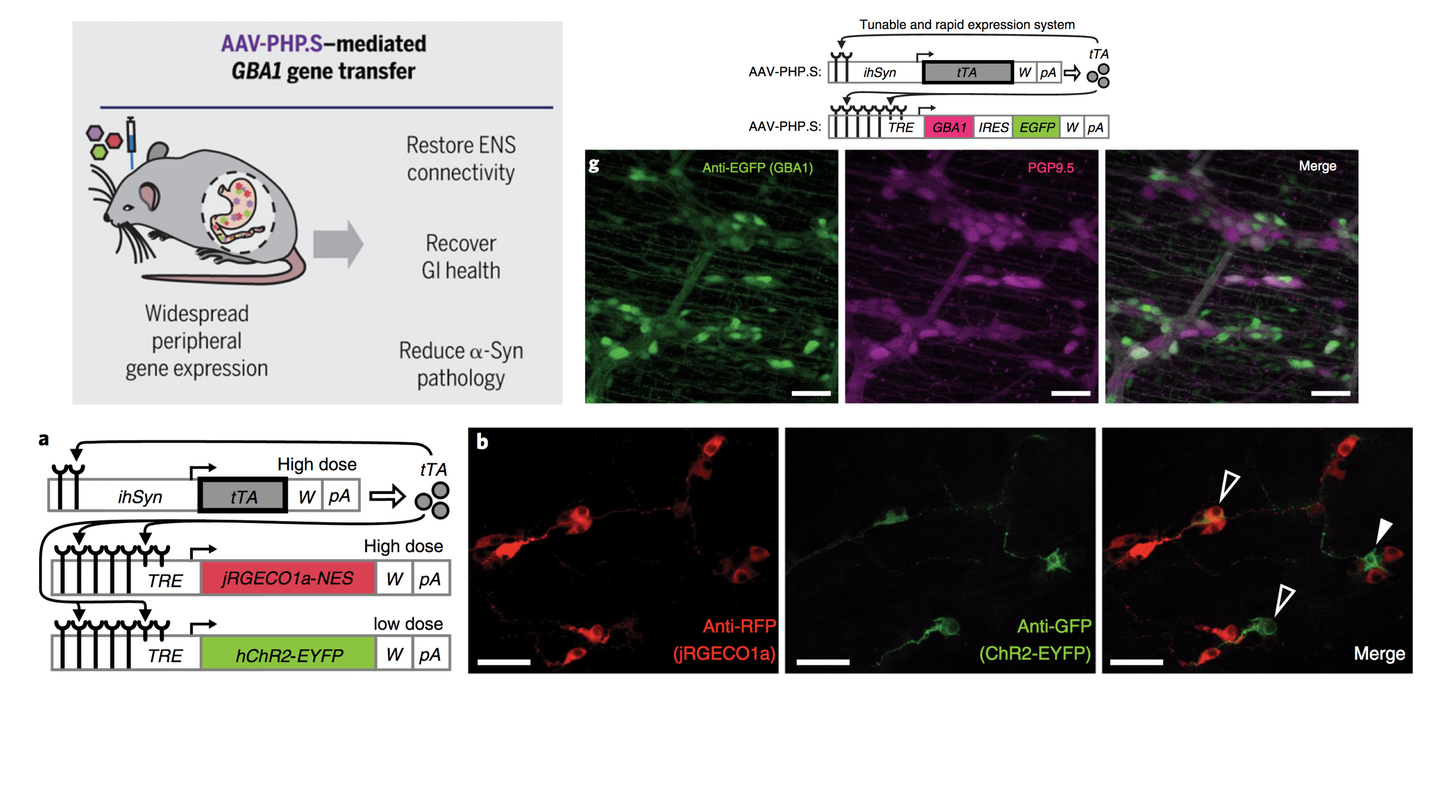

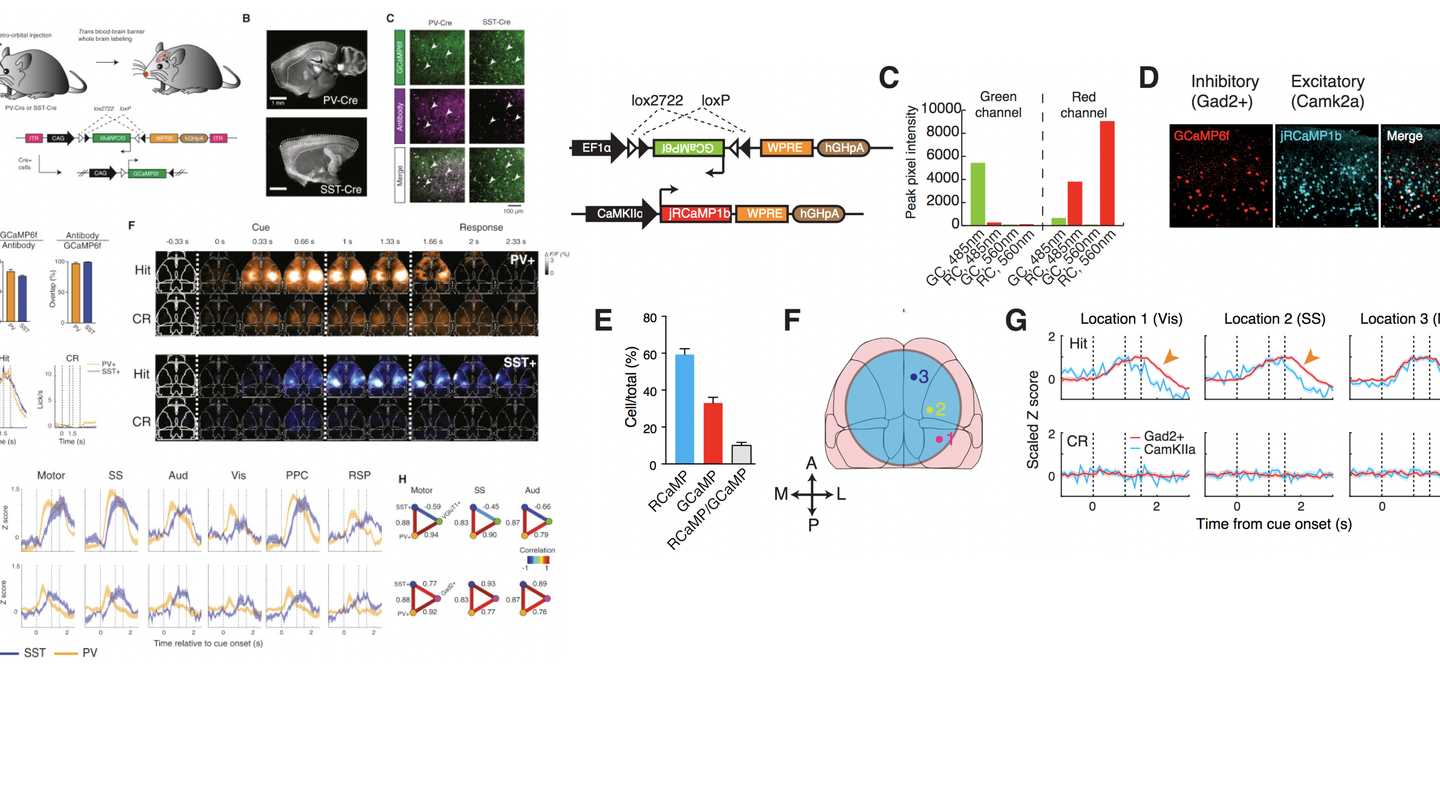

Systemic AAVs in action

AAV Publications

  • Adeno-associated viral vectors for functional intravenous gene transfer throughout the non-human primate brain. Chuapoco M.R., Flytzanis N.C., Goeden N., Octeau J.C., Roxas K.M., Chan K.Y., Scherrer J., Winchester J., Blackburn R.J., Campos L.J., Mimi Man K.N., Sun J., Chen X., Lefevre A., Singh V.P., Arokiaraj C.M., Shay T.F., Vendemiatti J., Jang M.J., Mich J.K., Bishaw Y., Gore B.B., Omstead V., Taskin N., Weed N., Levi B.P., Ting J.T., Miller C.T., Deverman B.E., Pickel J., Tian L., Fox A.S., Gradinaru V. Nature Nanotechnology, 2023; 10.1038/s41565-023-01419-x. [ Article ]

  • Functional gene delivery to and across brain vasculature of systemic AAVs with endothelial-specific tropism in rodents and broad tropism in primates. Chen X., Wolfe D.A., Sivadasan Bindu D., Zhang M., Taskin N., Goertsen D., Shay T.F., Sullivan E.E., Huang S., Ravindra Kumar S., Arokiaraj C.M., Plattner V.M., Campos L.J., Mich J.K., Monet D., Ngo V., Ding X., Omstead V., Weed N., Bishaw Y., Gore B.B., Lein E.S., Akrami A., Miller C., Levi B.P., Keller A., Ting J.T., Fox A.S., Eroglu C., Gradinaru V. Nature Communications, 2023; 10.1038/s41467-023-38582-7. [ Article ]

  • Primate-conserved carbonic anhydrase IV and murine-restricted LY6C1 enable blood-brain barrier crossing by engineered viral vectors. Shay T.F., Sullivan E.E., Ding X., Chen X., Ravindra Kumar S., Goertsen D., Brown D., Crosby A., Vielmetter J., Borsos M., Wolfe D.A., Lam A.W., Gradinaru V. Science Advances, 2023; 10.1126/sciadv.adg6618. [ Article | Caltech News Release ]

  • Spatial transcriptomics for profiling the tropism of viral vectors in tissues. Jang M.J., Coughlin G.M., Jackson C.R., Chen X., Chuapoco M.R., Vendemiatti J.L., Wang A.Z., Gradinaru V. Nature Biotechnology, 2023; 10.1038/s41587-022-01648-w. [ Article | Research Briefing ]

  • Molecular basis of astrocyte diversity and morphology across the CNS in health and disease. Endo F., Kasai A., Soto J.S., Qu Z., Hashimoto H., Gradinaru V., Kawaguchi R., Khakh B.S. Science, 2022; https://doi.org/10.1126/science.adc9020. [ Article | Perspective ]

  • Multimodal imaging of capsid and cargo reveals differential brain targeting and liver detargeting of systemically-administered AAVs. Seo J.W., Ajenjo J., Wu B., Robinson E., Nura Raie M., Wang J., Tumbale S.K., Buccino P., Alexander Anders D., Shen B., Habte F.G., Beinat C., James M.L., Taylor Reyes S., Ravindra Kumar S., Miles T.F., Lee J.T., Gradinaru V., Ferrara K.W. Biomaterials, 2022; https://doi.org/10.1016/j.biomaterials.2022.121701. [ Article ]

  • Targeting the lung epithelium after intravenous delivery by directed evolution of underexplored sites on the AAV capsid. Goertsen D., Goeden N., Flytzanis N.C., Gradinaru V. Molecular Therapy Methods Clinical Development, 2022; https://doi.org/10.1016/j.omtm.2022.07.010. [ Article ]

  • Structural basis of receptor usage by the engineered capsid AAV-PHP.eB. Jang S., Shen H.K., Ding X., Miles T.F., Gradinaru V. Molecular Therapy Methods Clinical Development, 2022; https://doi.org/10.1016/j.omtm.2022.07.011. [ Article ]

  • Transduction of systemically administered adeno-associated virus in the colonic enteric nervous system and c-Kit cells of adult mice. Wang L., Yuan P., Challis C., Ravindra Kumar S., Tache Y. Frontiers in Neuroanatomy, 2022; https://doi.org/10.3389/fnana.2022.884280. [ Article ]

  • Engineered AAVs for non-invasive gene delivery to rodent and non-human primate nervous systems. Chen X., Ravindra Kumar S., Adams C.A., Yang D., Wang T., Wolfe D.A., Arokiaraj C.M., Ngo V., Campos L.J., Griffiths J.A., Ichiki T., Mazmanian S.K., Osborne P.B., Keast J.R., Miller C.T., Fox A.S., Chiu I.M., Gradinaru V. Neuron, 2022; https://doi.org/10.1016/j.neuron.2022.05.003. [ Article ]

  • Glutamate in primary afferents is required for itch transmission. Cui L., Guo J., Cranfill S.L., Gautam M., Bhattarai J., Olson W., Beattie K., Challis R.C., Wu Q., Song X., Raabe T., Gradinaru V., Ma M., Liu Q., Luo W. Neuron, 2022; doi: 10.1016/j.neuron.2021.12.007. [ Article ]

  • AAV capsid variants with brain-wide transgene expression and decreased liver targeting after intravenous delivery in mouse and marmoset. Goertsen D., Flytzanis N.C., Goeden N., Chuapoco M.R., Cummins A., Chen Y., Fan Y., Zhang Q., Sharma J., Duan Y., Wang L., Feng G., Chen Y., Ip N.Y., Pickel J., Gradinaru V. Nature Neuroscience, 2022; doi: 10.1038/s41593-021-00969-4. [ Article ]

  • Deep parallel characterization of AAV tropism and AAV-mediated transcriptional changes via single-cell RNA sequencing. Brown D., Altermatt M., Dobreva T., Chen S., Wang A., Thomson M., Gradinaru V. Frontiers in Immunology, 2021; doi: 0.3389/fimmu.2021.730825. [ Article ]

  • Improved systemic AAV gene therapy with a neurotrophic capsid in Neimann-Pick disease type C1 mice. Davidson C.D., Gibson A.L., Gu T., Baxter L.L., Deverman B.E., Beadle K., Incao A.A., Rodriguez-Gil J.L., Fujiwara H., Jiang X., Chandler R.J., Ory D.S., Gradinaru V., Venditti C.P., Paven W.J. Life Science Alliance, 2021; doi: 10.26508/lsa.202101040. [ Article ]

  • Brain-wide Cas9-mediated cleavage of a gene causing familial Alzheimer's disease alleviates amyloid-related pathologies in mice. Duan Y., Ye T., Qu Z., Chen Y., Miranda A., Zhou X., Lok K.C., Chen Y., Fu A.K.Y., Gradinaru V., Ip N.Y. Nature Biomedical Engineering, 2022; doi: 10.1038/s41551-021-00759-0. [ Article ]

  • Specific and behaviorally conseqeuntial astrocyte Gq GPCR signaling attenuation in vivo with ißark. Nagai J., Bellafard A., Qu Z., Yu X., Ollivier M., Gangwani M.R., Diaz-Castro B., Coppola G., Schumacher S.M., Golshani P., Gradinaru V., Khakh B.S. Neuron, 2021; doi: 10.1016/j.neuron.2021.05.023. [ Article ]

  • Use of high-content imaging to quantify transduction of AAV-PHP viruses in the brain following systemic delivery. Smith, E.J., Farshim, P.P., Flomen, R., Jones S.T., McAteer, S.J., Deverman B.E., Gradinaru V., Bates G.P. Brain Communications, 2021; doi: 10.1093/braincomms/fcab105. [ Article ]

  • Multicolor sparse viral labeling and 3D digital tracing of the enteric plexus in mouse proximal colon using a novel adeno-associated virus capsid. Wang, L., Challis, C., Li, S., Fowlkes, C.C., Ravindra Kumar, S., Yuan, P.Q., Tache, Y.F. Neurogastroenterology & Motility, 2020; doi: 10.1111/nmo.14014. [ Article ]

  • Positron emission tomography imaging of novel AAV capsids maps rapid brain accumulation. Seo, J. W., Ingham, E. S., Mahakian, L., Tumbale, S., Wu, B., Aghevlian, S., Shams, S., Baikoghli, M., Jain, P., Ding, X., Goeden, N., Dobreva, T., Flytzanis, N. C., Chavez, M., Singhal, K., Leib, R., James, M. L., Segal, D. J., Cheng, R. H., Silva, E. A., Gradinaru, V., Ferrara, K. W. Nature Communications, 2020; doi: 10.1038/s41467-020-15818-4.  [ Article ]

  • Multiplexed Cre-dependent selection yields systemic AAVs for targeting distinct brain cell types. Ravindra Kumar, S., Miles, T. F., Chen, X., Brown, D., Dobreva, T., Huang, Q., Ding, X., Luo, Y., Einarsson, P. H., Greenbaum, A., Jang, M. J., Deverman, B. E., Gradinaru, V. Nature Methods, 2020; doi: 10.1038/s41592-020-0799-7.  [ Article | Cover | Caltech News Release ]

  • LRP1 is a master regulator of tau uptake and spread. Rauch, J. N., Luna, G., Guzman, E., Audouard, M., Challis, C., Sibih, Y., Leshuk, C., Hernandez, I., Wegmann, S., Hyman, B. T., Gradinaru, V., Kampmann, M., Kosik, K. S. Nature, 2020; doi: 10.1038/s41586-020-2156-5.  [ Article ]

  • Gut-seeded α-Synuclein fibrils promote gut dysfunction and brain pathology specifically in aged mice. Challis, C., Hori, A., Sampson, T. R., Yoo, B. B., Challis, R. C., Hamilton, A. M., Mazmanian, S. K., Volpicelli-Daley, L. A., Gradinaru, V. Nature Neuroscience, 2020; doi: 10.1038/s41593-020-0589-7.  [ Article | Open access link | Caltech News Release ]

  • Machine learning-guided channelrhodopsin engineering enables minimally invasive optogenetics. Bedbrook, C. N., Yang, K. K., Robinson, J. E., Mackey, E. D., Gradinaru, V., & Arnold, F. H. Nature Methods, 2019; doi: 10.1038/s41592-019-0583-8.  [ Article | Open access link | Caltech News Release ]

  • Optical dopamine monitoring with dLight1 reveals mesolimbic phenotypes in a mouse model of neurofibromatosis type 1. Robinson, J. E., Coughlin, G. M., Hori, A. M., Cho, J. R., Mackey, E. D., Turan, Z., Patriarchi, T., Tian, L., Gradinaru, V. eLife, 2019; doi: 10.7554/eLife.48983.  [ Article ]

  • Identification of peripheral neural circuits that regulate heart rate using optogenetic and viral vector strategies. Rajendran, P. S., Challis, R. C., Fowlkes, C. C., Hanna, P., Tompkins, J. D., Jordan, M. C., Hiyari, S., Gabris-Weber, B. A., Greenbaum, A., Chan, K. Y., Deverman, B. E., Münzberg, H., Ardell, J. L., Salama, G., Gradinaru, V., Shivkumar, K. Nature Communications, 2019; doi: 10.1038/s41467-019-09770-1.  [ Article ]

  • TRIM9-Mediated Resolution of Neuroinflammation Confers Neuroprotection upon Ischemic Stroke in Mice. Zeng, J., Wang, Y., Luo, Z., Chang, L.-C., Yoo, J. S., Yan, H., Choi, Y., Xie, X., Deverman, B. E., Gradinaru, V., Gupton, S. L., Zlokovic, B. V., Zhao, Z., Jung, J. U. Cell Reports, 2019; doi: 10.1016/j.celrep.2018.12.055.  [ Article ]

  • Epigenetic landscape and AAV targeting of human neocortical cell classes. Mich, J., Hess, E., Graybuck, L., Somasundaram, S., Miller, J., Ding, Y., Shapovalova, N., Fong, O., Yao, S., Mortrud, M., Chong, P., Bertagnolli, D., Goldy, J., Casper, T., Kroll, M., Hodge, R., Bakken, T., Yao, Z., Dee, N., Cetin, A., Smith, K., Gwinn, R., Cobbs, C., Ko, A., Ojemann, J., Keene, C., Silbergeld, D., Gradinaru, V., Sunkin, S., Zeng, H., Lein, E., Tasic, B., Ting, J. and Levi, B. bioRxiv, 2019; doi: 10.1101/555318.  [ Article ]

  • Systemic AAV vectors for widespread and targeted gene delivery in rodents. Challis, R. C., Kumar, S. R., Chan, K. Y., Challis, C., Beadle, K., Jang, M. J., Kim, H. M., Rajendran, P. S., Tompkins, J. D., Shivkumar, K., Deverman, B. E., Gradinaru, V. Nature Protocols, 2019; doi: 10.1038/s41596-018-0097-3. [ Article | Cover | Open access link | High resolution fluorescent images ]

  • The Neuropeptide Tac2 Controls a Distributed Brain State Induced by Chronic Social Isolation Stress Moriel Zelikowsky, May Hui, Tomomi Karigo, Andrea Choe, Bin Yang, Mario R. Blanco, Keith Beadle, Viviana Gradinaru, Benjamin E. Deverman and David J. Anderson. Cell 2018 May 17; doi: 10.1016/j.cell.2018.03.037.  [ Article | Open access link | Caltech News Release ]

  • Viral Strategies for Targeting the Central and Peripheral Nervous Systems Bedbrook CN, Deverman BE, Gradinaru V. . Annu Rev Neurosci. 2018 Apr 25. doi: 10.1146/annurev-neuro-080317-062048.  [ Article ]

  • Engineered AAVs for efficient noninvasive gene delivery to the central and peripheral nervous systems. Chan, K.Y., Jang, M.J., Yoo, B.B., Greenbaum, A., Ravi, N., Wu., W.L., Sanchez-Guardado, L., Lois, C., Mazmanian, S.K., Deverman, B.E., Gradinaru, V. Nature Neuroscience, 2017; doi:10.1038/nn.4593.  [ Article | Caltech News Release | News and Views | Cover | Open access link ]

  • Global representations of goal-directed behavior in distinct cell types of mouse neocortex. Allen, W.E., Kauvar, I.V., Chen, M.Z., Richman, E.B., Yang, S.J., Chan, K., Gradinaru, V., Deverman, B.E., Luo, L., Deisseroth, K. Neuron, 2017;94, 891-907.  [ Article | DARPA Highlight ]

  • Cre-dependent selection yields AAV variants for widespread gene transfer to the adult brain. Deverman, B.E.*; Pravdo, P.L.; Simpson, B.P.; Kumar, S.R.; Chan, K.Y.; Banerjee, A.; Wu, W.L.; Yang, B.; Huber, N.; Pasca, S.P.; Gradinaru, V.*, Nat Biotech, 2016; doi:10.1038/nbt.3440.  [ Article | Caltech News Release | Video | CIRM Blog | F1000 Exceptional]
